    Low Thermal Expansion Custom Shape Alumina Ceramic Pipe

    Ask Lasest Price
    Brand Name : oem customer brand
    Certification : ISO9001:2008/SGS/ROHS
    Price : 2-50 dollar
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 3000 mon/piecs
    Delivery Time : 2 -25 days(depends on the quantity)
    • Product Details
    • Company Profile

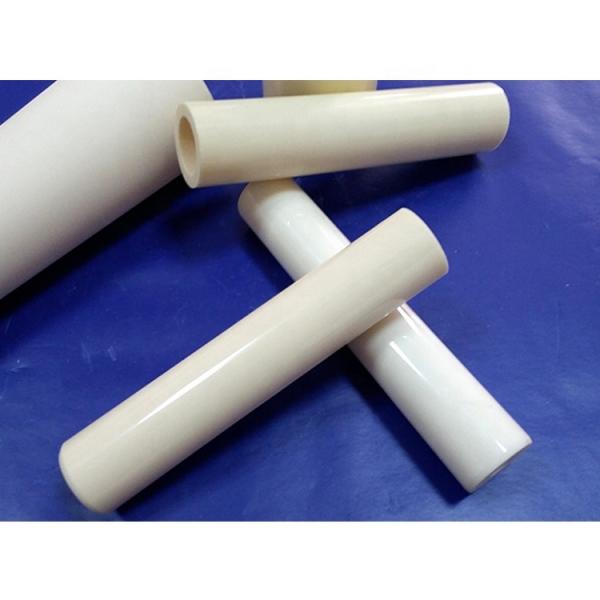

    Low Thermal Expansion Custom Shape Alumina Ceramic Pipe

    High Specific Surface Alumina Pipe Good Heat-Shock Resisting Ability Custom Shape Ceramic Pipe

    Most Alumina Ceramics are white but can be pink or brown. The different colors are derived from the additives during sintering as well as any impurities in the raw material. The majority of Alumina Ceramics have a purity level between 95 and 99 per cent. Higher purity Alumina Ceramics are perfect for environments where there is potential severe wear or may contain corrosive contaminates. Since Alumina Ceramics have excellent thermal stability, they can be used in areas that have drastic temperature changes.


    The chemical composition of Alumina Ceramics heightens its resistance to corrosion. Alumina is known as aluminum oxide, a hard wearing advanced ceramic that has been in use for years and is the most popular ceramic material for a variety of applications. The aluminum oxide in Alumina Ceramics is a form of bauxite, a white, brown, or red clay material first discovered in France in the early 19th Century and is commonly found in several locations around the world.


    High Specific Surface Alumina Pipe Good Heat-Shock Resisting Ability Custom Shape Ceramic Pipe

    Low Thermal Expansion Custom Shape Alumina Ceramic Pipe

    Feature:

    1). low thermal expansion

    2). large specific heat capacity

    3). high specific surface area

    4). low pressure drop

    5). small thermal resistance

    6). good thermal conductivity

    7). good heat-shock resisting ability


    Application:

    1)Electric appliance industry

    2)Automotive industry

    3)Mechanical industry

    4)Engineer industry


    Alumina Ceramics are widely used because of their chemical stability, which they maintain at high temperatures. It is an insoluble material that is resistant to acids, alkaline, and other chemicals. For these reasons, several million tons of Alumina Ceramic are produced every year. Over the years, Alumina Ceramics have been put through several tests to determine its chemical resistance. The high purity of Alumina Ceramics creates such strong bonds that it is not susceptible to any form of chemical damage.

    Low Thermal Expansion Custom Shape Alumina Ceramic PipeLow Thermal Expansion Custom Shape Alumina Ceramic PipeLow Thermal Expansion Custom Shape Alumina Ceramic Pipe


    Do not find similar ceramic products on this page?

    For more detail of ceramic products like price,shipping,samples...

    Quick Free Quote . Our official E-mail: admin@cerampart.com(Mr admin).thanks


    Application:

    It commonly used as funcation and engineering ceramic components, widely used in electric power , metallurgy , mineral , coal and chemical industry.

    Material
    95% Al2O3
    96% Al2O3
    99% Al2O3
    99.5% Al2O3
    99.7% Al2O3
    Color
    White/Pink
    White
    Ivory
    Ivory
    Ivory
    Density (g/cm3)
    3.65
    3.72
    3.88
    3.90
    3.92
    Water Absorption (%)
    0
    0
    0
    0
    0
    Moh's Hardness
    9
    9
    9
    9
    9
    Flexural Strength (Mpa) (25℃)
    352
    358
    364
    379
    375
    Compressive Strength (Mpa) (25℃)
    2000
    2068
    2500
    2600
    2500
    Thermal Conductivity (W/m.k) (25℃)
    18-25
    ≥24
    27
    30
    30
    Thermal Expansion Coefficient
    (25-1000℃)(10-6mm/℃)
    8
    8
    8
    8
    8
    Therma Shock Resistance △T(℃)
    220
    220
    180-200
    180-200
    180-200
    Max. Working Temperature (℃)
    1500
    1650
    1700
    1750
    1750
    Dielectric Strength (kv/mm)
    16
    17.2
    20
    22
    22
    Electrical Resistivity (Ω.cm) (25℃)
    1014
    1014
    1014
    1014
    1014
    Dielectric Constant
    (@1MHz, 25℃)
    9
    9
    9.7
    9.7
    9.8
    Dielectric Loss (tan delta)
    (@1MHz, 25℃)
    0.0004
    0.0002
    0.0001
    0.0001
    0.0001

    Delivery:
    Custom OEM will be shipped within 15 days after determining the parameters
    The samples will be shipped within 3 days
    Quick Delivery Via Fedex,DHL,UPS,TNT Etc.
    Support customer to designate shipping company
    For more informations (the price,delivery time,moq etc)about the ceramic plates, please contact us or email:admin@cerampart.com


    CEO: Admin deng
    Dongguan Mingrui Ceramic Tech. Co. Ltd.
    Add: No.21 Chuangxing Rd., 2nd Industrial Zone of Shangsha,
    Chang'an town, Dongguan city, Guangdong, China 523867
    Email: admin@cerampart.com

    FAQ
    1. Monthly Capacity: 50,000-60,000 pcs;
    2. Material: OEM or as per your suggestion;
    3. Lead time: about 7-20 days, pls confirm the quantities required;
    4. Incoterm: FOB, CFR, CIF;
    5. Delivery Cost: It is determinated by the destination port;
    6. Payment Term: PayPal; T/T; L/C.
    7. Shipment: by sea, by air, by courier, by post, etc.
