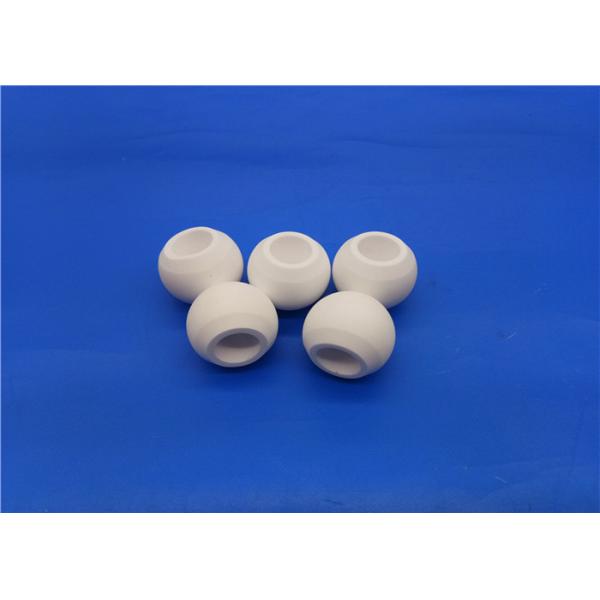

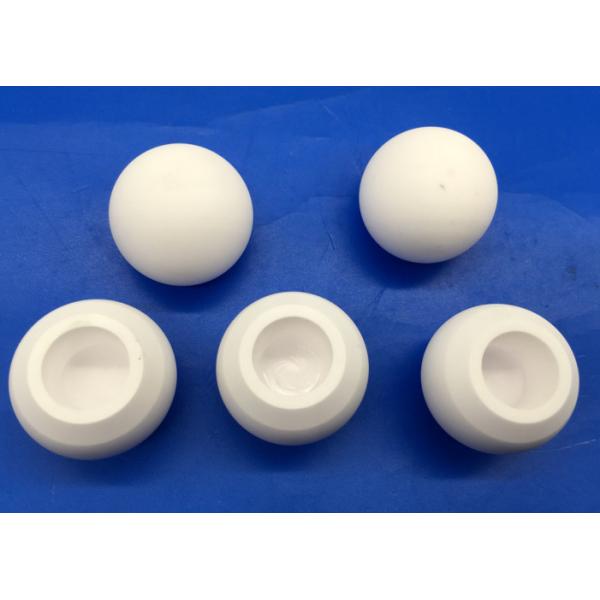

40mm Yttrium Stabilized Zirconia Zro2 Ball / Beads Ceramic Grinding Ball / Beads Valve

40mm Yttrium Stabilized Zirconia Zro2 Ball/Beads Ceramic Grinding Ball/Beads Valve

Product features:

Higher gas transfer efficiency

1200°C capability

Enhanced corrosion resistance

Cleanable and reusable

Uniform pore sizes and high surface areas

Excellent chemical resistance in both acid and alkaline conditions.

Good wearing and erosion resistance.

Withstands high temperature.

Good rigidity and dimensional stability.

Product Name	40mm Yttrium Stabilized Zirconia Zro2 Ball/Beads Ceramic Grinding Ball/Beads Valve
Material	Alumina ceramic
OD	0.3mm -50mm
Length	mm - 500mm
Surface Roughness	Ra0.05
Torlerance	+/- 0.001mm
Lead time	10 - 30days
Shipping	Air Express (DHL/UPS/TNT/ FedEx)

Properties Sheet of zirconia and alumina :

Properties	Unit		Alumina				Zirconia
Properties	Unit	96%Al₂O₃	99%Al₂O₃	99.5%Al₂O₃	99.8%Al₂O₃	99.9%Al₂O₃	3Y-TZP
Colour	-	White	White	Ivory	Ivory	Translucent	white/black
Bulk density	g/cc	3.78	3.88	3.93	3.93	3.98	6.03
Water Absorption	%	0	0	0	0	0	0
Grain size	μm	5-10	2-5	2-5	2-5	2-4	0.4
Bending strength	MPa	380	350	360	380	300	1000
K_IC	MPa.m1/2	3~4	4	3~4	3~4	3~4	5~8
Vickers Hardness	GPa	13	14	14.5	14.5	15	13
Young's Modulus of Elasticity	GPa	360	370	370	380	390	200
Thermal Conductivity	W/m° K	24	28	32	32	34	2
Coefficient of Linear Expansion	10-6/°C	6.7	7.2	7.2	7.2	7.2	10.5
Dielectric Constant (1MHz)	-	9.1	9.5	9.6	9.6	9.9	33
Dielectric Loss Angle (1MHz)	-	0.0002	0.0001	0.0001	0.0001	0.0001	0.002
Dielectric Strength	V/m	15×10⁶	15×10⁶	15×10⁶	15×10⁶	15×10⁶	11×10⁶
Volume Resistivity	Ohm.cm	>10¹⁴	>10¹⁴	>10¹⁴	>10¹⁴	>10¹⁴	10¹³
(RT)	Ohm.cm	>10¹⁴	>10¹⁴	>10¹⁴	>10¹⁴	>10¹⁴	10¹³

Processing Methods

40mm Yttrium Stabilized Zirconia Zro2 Ball / Beads Ceramic Grinding Ball / Beads Valve

Packaging & Delivery

Packaging Details:	1. Carton with Bubble bag or foam. 2. Wooden carton 3. As per customer's requirements.
Delivery Details:	1. 3-25 days for sample 2. 25-40 days for mass products.
Shipment Terms:	1. Small order: By express, DHL/ UPS/ Fedex/ EMS etc. 2. Large order: By sea or By air

More related products

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
